Description

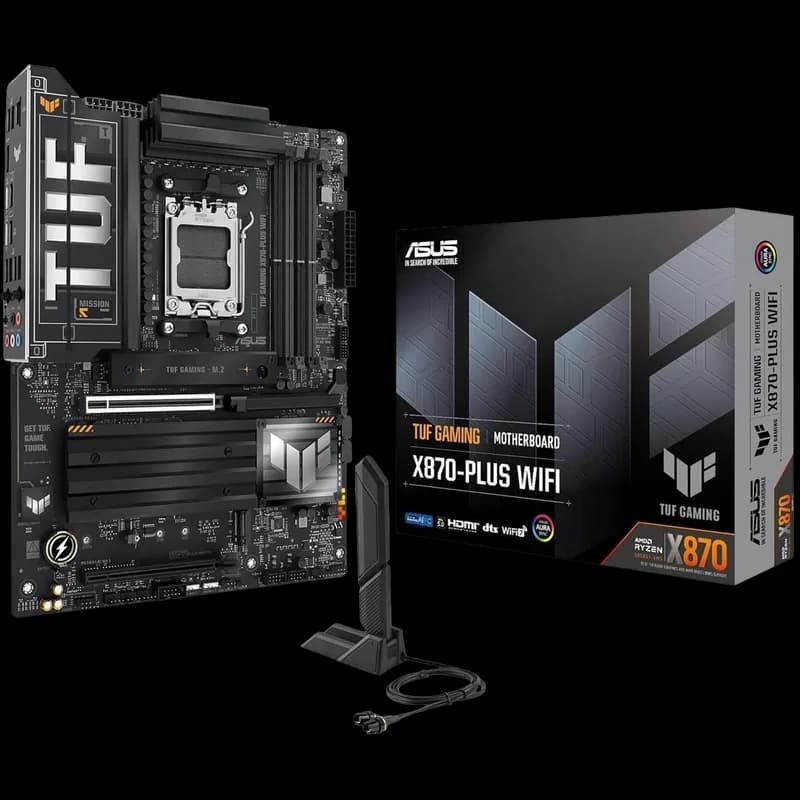

ASUS TUF GAMING X870-PLUS AM5 ATX Motherboard (WIFI) is a motherboard selected for dependable performance, practical everyday use, and a clean system setup.
Key Specifications:
Specifications
- • Brand
- ASUS
- • Chipset
- X870
- • CPU Socket
- AM5
- • Form Factor
- ATX
- • Wireless
- Wi-Fi
- • Part Number
- 90MB1IU0-M0AAY0
- • CPU Socket Type
- AM5
- • CPU Type
- Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- • Number of Memory Slots
- 4x288pin (DDR5)
- • Memory Standard
- DDR5 4400
- • Maximum Memory Supported
- 256GB
- • Channel Supported
- Dual Channel
- • ECC Supported
- Yes
- • Buffer Supported
- Un-buffered
- • Memory Feature
- Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- • PCI Express 5.0 x16
- AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
- • PCI Express 4.0 x16
- AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- • M.2
- AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs
