Description

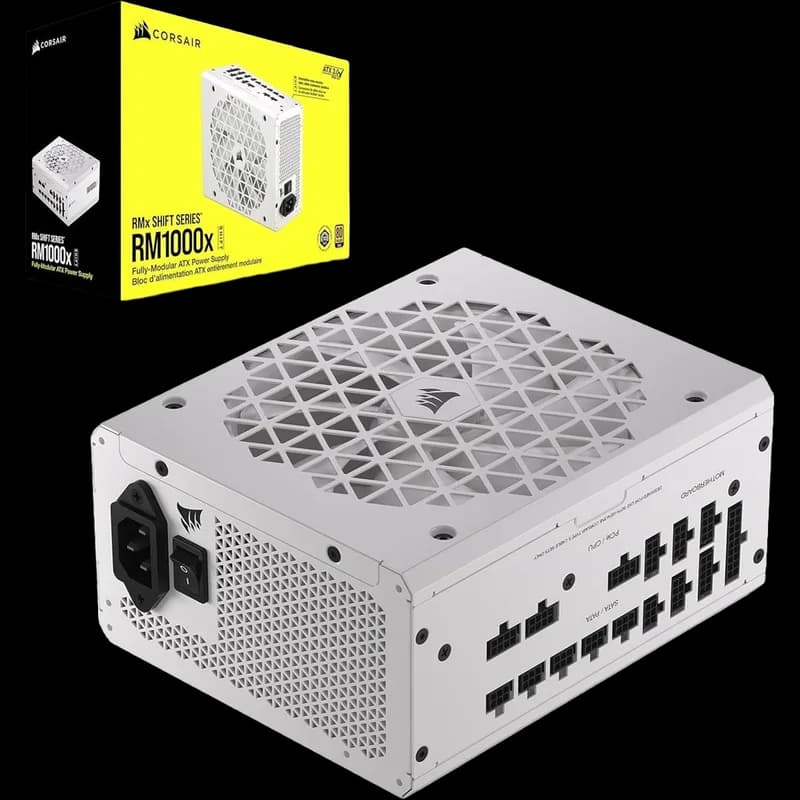

Corsair RM1000x 80+ GOLD Fully Modular PSU is a power supply selected for dependable performance, practical everyday use, and a clean system setup.
Key Specifications:
Specifications
- • Brand
- Corsair
- • Modularity
- Fully Modular
- • Rated Power
- 1000 W
- • Efficiency Certification
- 80 PLUS Gold
- • Fan Mode
- Zero RPM mode at low/medium loads
- • Capacitors
- 100% Japanese, 105 °C rated
- • ATX / EPS Compliance
- ATX12V v2.4 and EPS12V v2.92 (newer versions ATX 3.1, PCIe 5.1 support)
- • +12V Rail Current
- 83.3 A (~1000 W)
- • Combined +3.3V & +5V Rails
- 20 A for each; combined 150 W
- • Other Rails
- 12V
- • Form Factor
- ATX, 150 × 86 × 180 mm
- • Fan Type
- 135 mm (Magnetic Levitation or Rifle bearing depending on version)
- • Operating Temp (Continuous)
- Up to ~50 °C
- • Protections Enabled
- OVP / UVP / SCP / OTP / OPP
- • Input Voltage Range
- 100-240 V AC, 47-63 Hz
- • Connectors
- 1 × ATX 24-pin 2 × EPS 8-pin (4+4) 4 × PCIe 8-pin (6+2) Multiple SATA ports Peripheral / Molex connectors
- • MTBF (Mean Time Between Failures)
- 100,000 hours
- • -12V
- 0.3 A; +5VSB
