Description

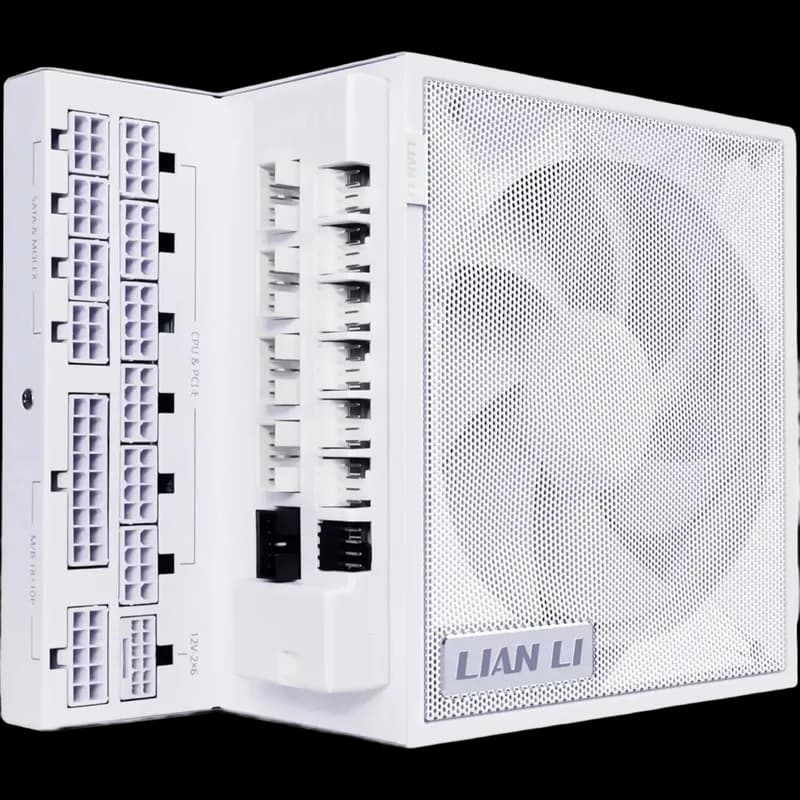

Lian Li Edge EG1000 1000W ATX 3.1 80+ Platinum Full Modular PSU is a power supply selected for dependable performance, practical everyday use, and a clean system setup.
Key Specifications:
Specifications
- Color options
- White, Black
- Height
- 135 mm
- Width
- 209 mm
- Length
- 419 mm
- Available Colors
- White, Black.
- • Brand
- Lian Li
- • Wattage
- 1000W
- • Modularity
- Fully Modular
- • ATX Version
- ATX 3.1
- • Series
- Edge series
- • Type
- ATX
- • Maximum Power
- 1000 W
- • Fans
- 1 x 120 mm FDB Fan
- • PFC
- Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
- • Max PSU Length
- 182 mm
- • Modular
- Full Modular
- • Energy-Efficient
- 80 PLUS PLATINUM Certified
- • Protection
- OCP/OVP/OTP/OPP/SCP/UVP
- • Input Voltage
- 100 – 240 V
- • Input Frequency Range
- 50/60 Hz
- • Input Current
- 12-6A
- • Connectors
- 1 x 24/20-Pin motherboard connector (400mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (450mm) x2pcs 1 x12VHPWR connector (600mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs USB*9pin – USB*9pin connector (350mm) ×1pcs USB*9pin – Type Aconnector (550mm) × 1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 4 x Y Type SATA connector (400mm-100mm)*2 x1pcs 1 x 8/6+2 Pin PCle connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (600mm) x2pcs 4 x SATA connector (400mm-200mm-200mm-200mm) x1pcs
- • Dimensions
- 16.5 X 8.22X 5.31 inch
