Description

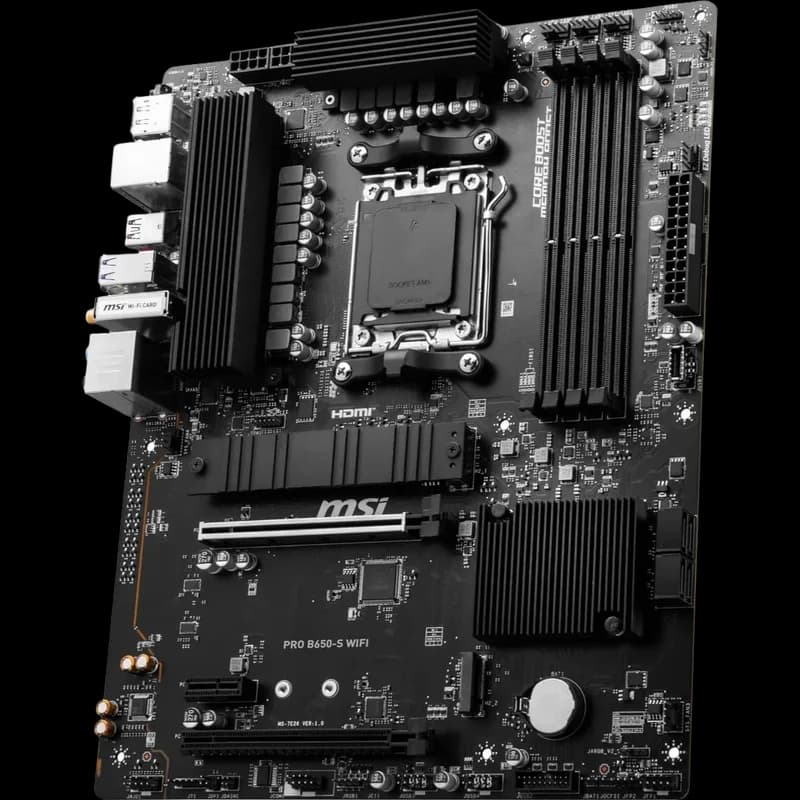

MSI PRO B650-S WIFI AM5 ATX Motherboard is a motherboard selected for dependable performance, practical everyday use, and a clean system setup.
Key Specifications:
Specifications
- • Brand
- MSI
- • Chipset
- B650
- • CPU Socket
- AM5
- • Form Factor
- ATX
- • Wireless
- Wi-Fi
- • CPU Socket Type
- AM5
- • CPU Type
- Ryzen 7000 Series
- • Number of Memory Slots
- 4x288pin (DDR5)
- • Memory Standard
- Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency
- • Maximum Memory Supported
- 192GB
- • Channel Supported
- Dual Channel
- • ECC Supported
- Non-ECC
- • Buffer Supported
- Un-buffered
- • Memory Feature
- Supports AMD EXPO
- • PCI Express 4.0 x16
- 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- • PCI Express x1
- 1x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- • SATA 6Gb/s
- 4 x SATA 6Gb/s
- • M.2
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
